Laborofen LE 1100 Grad
Item num.: L 003
by LAC
0,00 €
incl. 19,00 % VAT, plus Shipping costs
- Easy to install, easy to control
- Custom adjustments
- Delivery times within just 2 days
- Noise-free operation
- 24-month warranty
- Immediate technical support
- Quick run-up to Tmax
- Adjustable air intake
- Great price
- Incineration, combustion, annealing loss (PS)
- Enamel firing (PS)
- Sintering
- Heat treatment of metal materials (PS)
- Melting metal materials
- Glass fusing
- Material testing
- Ht60B controller (regulates to a constant value)
- heating elements in quartz tubes
- ventilation chimney for venting the furnace’s operational space
- slide valve for controlling air intake
- “K” type thermocouple
- contactless switching relay for noise-free operation
- limit switch for safe opening of the furnace
- door manually opened downwards
- power cable fitted with one-phase plug
- tabletop variant
- Ht40P controller (10 programmes with 15 steps each)
- injector with exhaust fan and pull interruptor for drawing off combustion products (only with Ht40P controller)
- intake of protective atmosphere (manually or automatically controlled gas intake)
- calibration of the controller’s measuring input
- RS232 or EIA485 interfaces including software and cabling
- HtMonit set (software + interface)

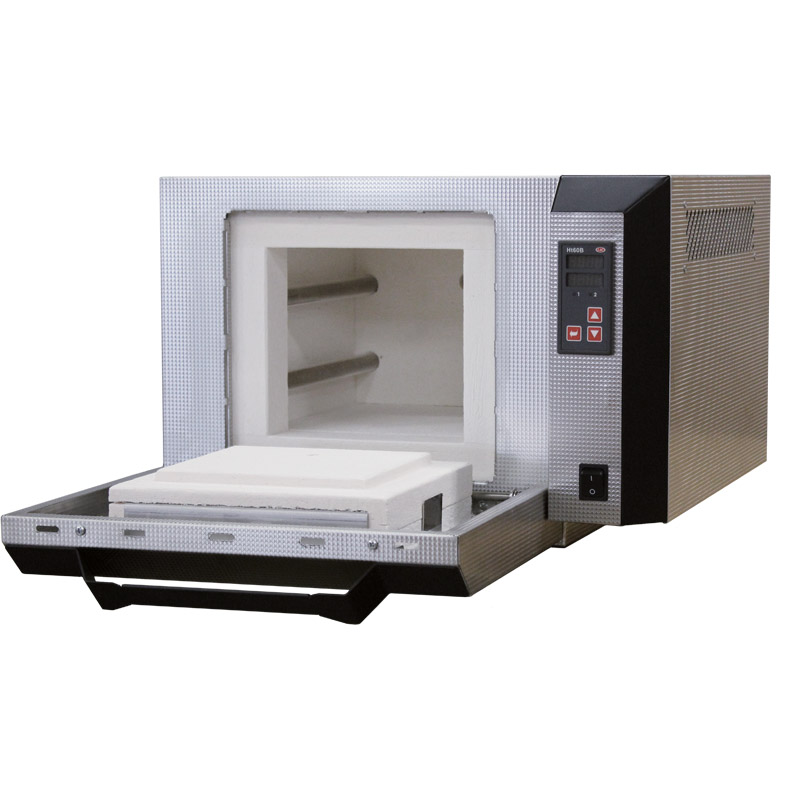

LE laboratory chamber furnace up to 1100 °C
A more economical version of the L laboratory furnace for shorter-term operation
Although the LE laboratory furnace is not as robust as the L furnace, it boasts an unbeatable price/performance ratio. LE furnaces will serve you similarly well to the L furnaces for trials and testing. But you definitely should not expect 24/7 operation from them—for that purpose, the L furnaces are more suitable.Benefits
Charge treatment technology
(PS = partially suitable)Standard equipment
Optional accessories available at additional cost
Technical parameters
Furnace equipment
| Furnace type | Tmax°C | Recommended operating temperature range in °C | Volume in l | External dimensions (w × h × d) mm | Internal dimensions (w × h × d) mm | Input in kW | Weight in kg | Protection* | Voltage V | Max. load capacity of bottom in kg |
| LE 05/11 | 1100 | 700 - 1050 | 5 | 470×330×455 | 170×130×230 | 1,8 | 20 | 16/1 | 230 | 6 |
| LE 09/11 | 1100 | 700 - 1050 | 9,4 | 490×370×515 | 190×170×290 | 2,3 | 24 | 16/1 | 230 | 6 |
| LE 15/11 | 1100 | 700 - 1050 | 14,4 | 550×370×565 | 250×170×340 | 3,0 | 28 | 16/1 | 230 | 6 |
