Labormuffelofen LMH
Item num.: LMH 1
by LAC
0,00 €
incl. 19,00 % VAT, plus Shipping costs
- Easy to install, easy to control
- Custom adjustments
- Delivery times within just 2 days
- Noise-free operation
- 36-month warranty
- Immediate technical support
- Quick run-up to Tmax
- Even temperature distribution
- Mechanical durability
- Chemical durability
- Incineration, combustion, annealing loss (PS)
- Enamel firing (PS)
- Sintering
- Heat treatment of metal materials (PS)
- Melting metal materials
- Glass fusing
- Material testing
- Easy to install, easy to control
- Custom adjustments
- Delivery times within just 2 days
- Noise-free operation
- 36-month warranty
- Immediate technical support
- Quick run-up to Tmax
- Even temperature distribution
- Mechanical durability
- Chemical durability
- Incineration, combustion, annealing loss (PS)
- Enamel firing (PS)
- Sintering
- Heat treatment of metal materials (PS)
- Melting metal materials
- Glass fusing
- Material testing
- Ht40AL controller (1 programme: 2x run-up, 2x dwell)
- heating spiral coiled on muffle, outside the furnace space
- muffle insulated with mineral-fibre mat covered with insulation plates
- ventilation chimney for venting the furnace’s operational space
- protective glass in door slit
- “S” type thermocouple
- contactless switching relay for noise-free operation
- limit switch for safe opening of the door
- door manually opened upwards
- power cable fitted with one-phase plug
- tabletop variant
- HtIndustry/Ht205 controller (30 programmes with 15 steps each)/Ht200 controller (30 programmes with 25 steps each, USB interface)
- injector with exhaust fan and pull interruptor (only with HtIndustry/Ht205/Ht200 controller)
- intake of protective atmosphere (manually or automatically controlled gas intake)
- calibration of the controller’s measuring input
- RS232 or EIA485 interfaces including software and cabling
- HtMonit set (software + interface)

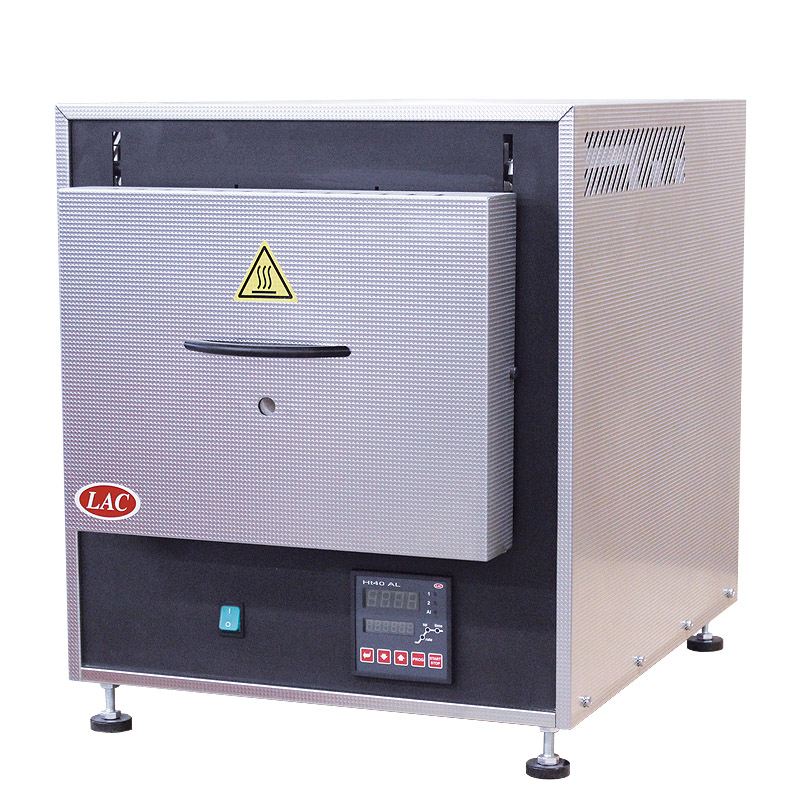

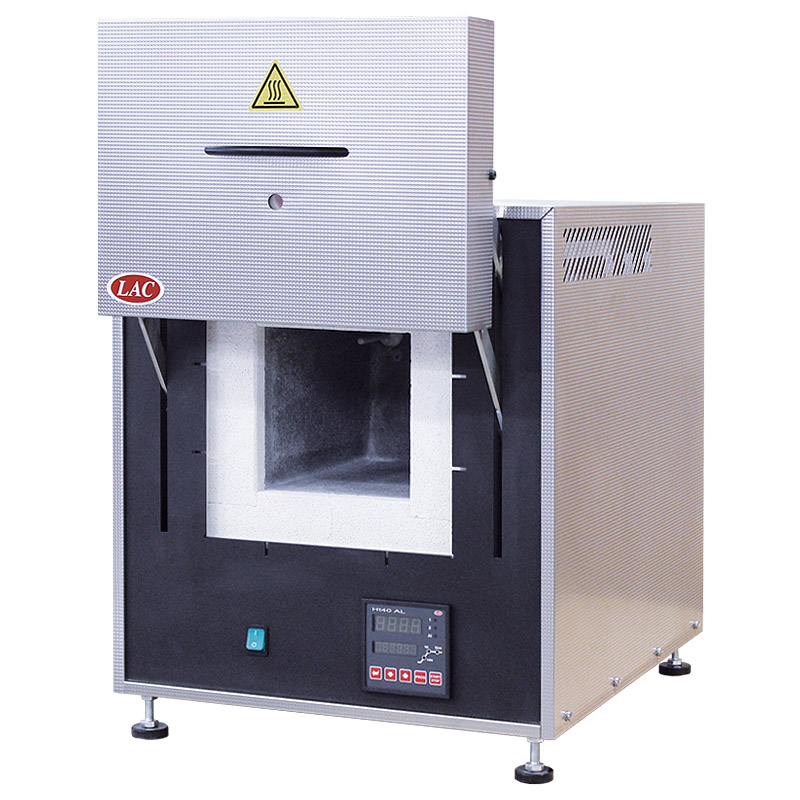

LMH muffle laboratory furnace up to 1200 °C
Specially designed for testing aggressive charges
The heating spirals are outside the furnace chamber and are covered with a resilient ceramic muffle, so aggressive flue gases cannot even reach them. The furnace is furthermore also protected with exhaust ventilation that prevents condensation of vapours during firing.Benefits
Charge treatment technology
(PS = partially suitable)
LMH muffle laboratory furnace up to 1200 °C
Specially designed for testing aggressive charges
The heating spirals are outside the furnace chamber and are covered with a resilient ceramic muffle, so aggressive flue gases cannot even reach them. The furnace is furthermore also protected with exhaust ventilation that prevents condensation of vapours during firing.I want this furnace
+420 547 230 016 Call us from 8:00 a.m. to 2:00 p.m.
sales@lac.cz We’ll reply within 24 hours.
Furnaces in stock Furnaces and dryers ready for pick-up
Benefits
Charge treatment technology
(PS = partially suitable)Technical parameters
| Furnace type | Tmax°C | Recommended operating temperature range in °C | Volume in l | External dimensions (w × h × d) mm | Internal dimensions (w × h × d) mm | Input in kW | Weight in kg | Protection* | Voltage V | Max. load capacity of bottom in kg |
| LMH 04/12 | 1200 | 700 - 1150 | 4 | 490×540×720 | 170×90×275 | 3,0 | 42 | 16/1 | 230 | 10 |
| LMH 07/12 | 1200 | 700 - 1150 | 7 | 490×540×720 | 170×170×275 | 3,0 | 48 | 16/1 | 230 | 10 |
| LMH 11/12 | 1200 | 700 - 1150 | 11 | 570×540×720 | 255×165×255 | 3,5 | 53 | 16/1 | 230 | 15 |
Standard equipment
Optional accessories available at additional cost
